Caratteristiche:

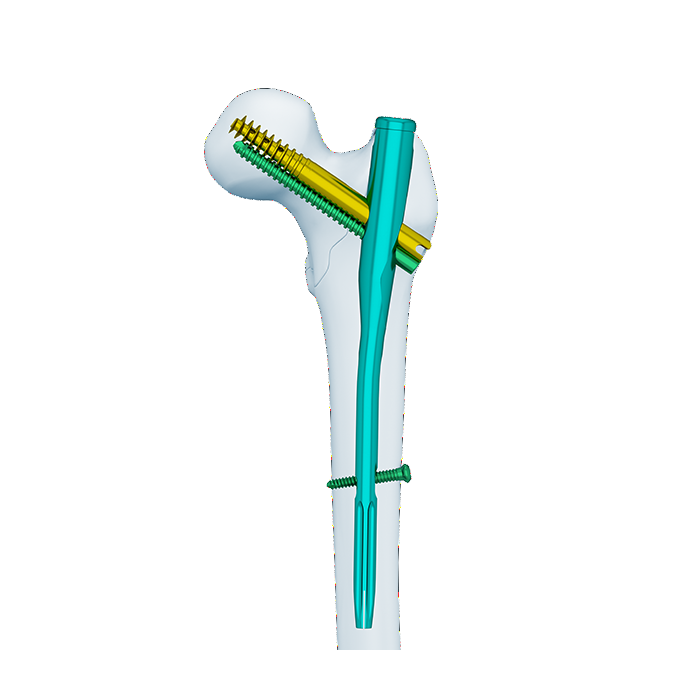

Nail
- 125° CCD angle provide more option for different anatomy.
- Medial-lateral angle of 5° allows insertion at the tip of the great trochanter.
- Design con taglio piatto laterale per un inserimento più facile e una minore pressione sulla corticale laterale.
- 3 size end cap 0mm, 5mm, 10mm prevent soft tissue in growth facilitate implant removal.

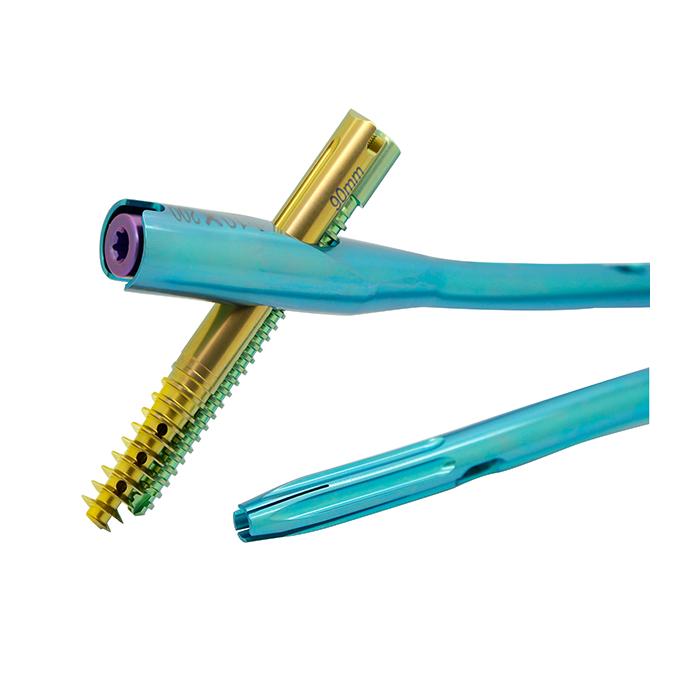

Screws
- Unique combined compression lock screw: continuous pressurization to eliminate the “Z” effect.
- Pressurizing screw end: fix the nail in the medial side of the medullary cavity to reduce the pressure of lateral cortex.
- Bone Cement hole design: with special instruments, focus on treatment of osteoporosis patients.
- Gear Structure: controllable rotation during reduction provides linear pressurization.
Aiming Jig:
- Made of carbon fiber material, light weighted and radiolucent.
- One jig for insertion of lag screw, compression screw and locking screw, no need to change instruments during operation.
- Per fratture instabili, fornisce due fori per fili di Kirschner per la fissazione temporanea antirotazionale.
Indicazioni:
- Fratture pertrocanteriche
- Fratture intertrocanteriche
- Fratture sottotrocanteriche alte

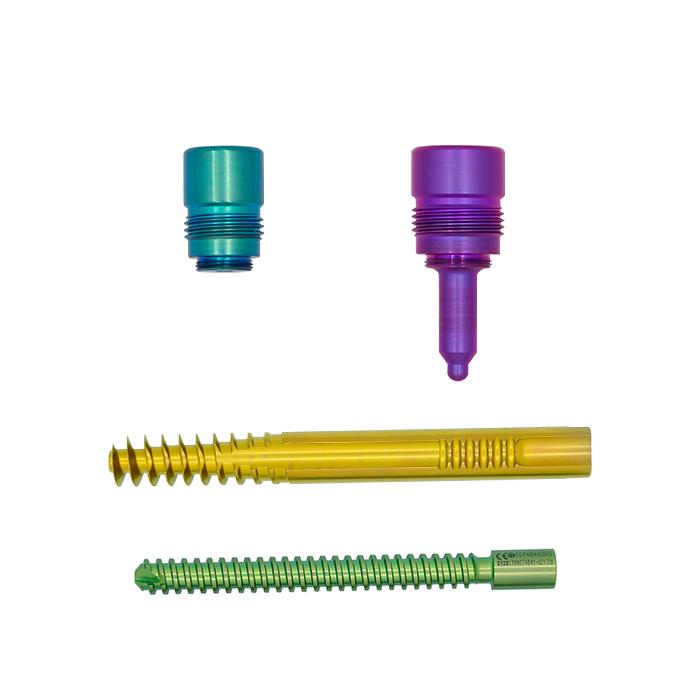

Viti:
- Lag Screw for Proximal Femoral Compression Nail
- Compression Screw for Proximal Femoral Compression Nail
- Vite di bloccaggio da 4,9 mm
- End Cap for Proximal Femoral Compression Nail
Set di strumenti:
- Proximal Femoral Compression Nail Instrument Set
